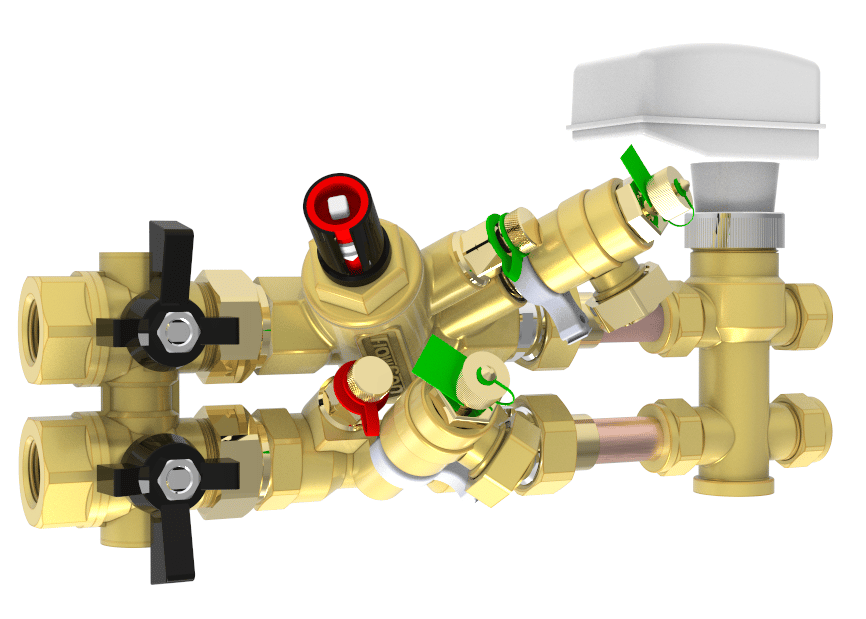

FloSet 4-Port ABV

FloSet 4-Port comprises the FlowCon Flushing By-Pass on 40mm centres, 5 modes of operation including full isolation of the coil and high Kvs by-pass for full velocity system flush; FlowCon Flow Venturi Metering Station + 5% accuracy, with integrated Test Point and fitted with Combined PT Plug & Drain in the Flow Branch and Optional Strainer (static pressure 20 Bar maximum); Johnson Controls 4-Port Valve with 24V Electric Modulating or Raise Lower Actuator control; FlowCon E-Just or Composite Automatic Balancing Valve with an externally or internally adjustable, removable Insert, with an integrated Test Point & Combined PT Plug & Drain Valve in the Return Branch; Conex Compression FCU Connections for direct mounting onto the Fan Coil Unit over the extended drip tray; female threaded system-side connections. Optional: Blank cap for flushing.

FloSet 4-Port ABV
  • Heating & Cooling Duty -10˚C – +120˚C
  • Static pressure 25 Bar
  • Differential pressure up to 400 kPa depending upon ABV insert selection
  • Pressure Independent Automatic Balancing
  • Accurate flow measurement at the terminal unit
  • Drain & Test Points in the flow and return
  • Flow rates 0.008 – 0.408 l/s, 41 settings per externally adjustable insert type (6 types in total) and 65 across 10 internally adjustable inserts for superior accuracy
  • 24V Modulating or Raise Lower Control
  • Line sizes DN15-20
  • Fully tested, labelled, cross-referenced to schedule, with QR code link to technical data
  • Vertical & horizontal configuration
